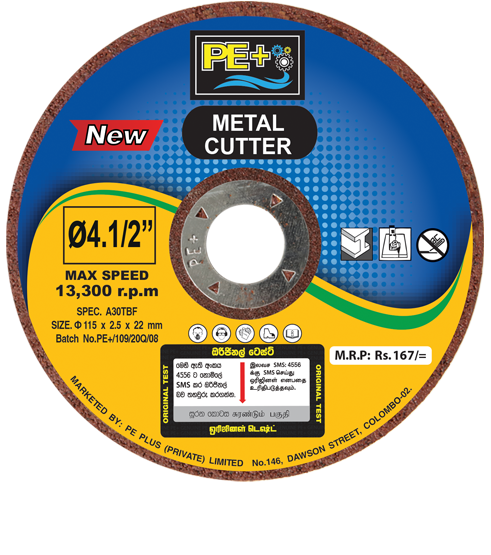

PE+ CUTTING DISC

Cutting Disc is suitable for all general metal cutting applications. Examples: Sheet metal cutting, Pipe and rods sectioning etc. while the large diameter wheels are for use on chop saw equipment; Large wheels are best choice for cutting light tubing, angle iron, exhaust pipes, steel extrusions etc. Cutting disc is to be used only for cutting, but, not to be used for grinding operation.

Sizes

Specifications

Max. Speed

4”

Ø 100 x 2.5 x 16 mm
Outer Diameter - 100 mm
Inner Diameter (Bore)- 16 mm
Thickness - 2.5 mm

15,300 rpm

4 1/2”

Ø 115 x 2.5 x 22 mm
Outer Diameter - 115 mm
Inner Diameter (Bore)- 22 mm
Thickness - 2.5 mm

13,300 rpm

12”

Ø 305 x 3 x 25.4 mm
Outer Diameter - 305 mm
Inner Diameter (Bore)- 25.4 mm
Thickness - 3 mm

4,500 rpm

14”

Ø 355 x 3 x 25.4 mm
Outer Diameter - 355 mm
Inner Diameter (Bore)- 25.4 mm
Thickness - 3 mm

3,900 rpm

16”

Ø 400 x 3 x 25.4 mm
Outer Diameter - 400 mm
Inner Diameter (Bore)- 25.4 mm
Thickness - 3 mm

3,300 rpm

Sizes

  • 16"
  • 14"
  • 12"
  • 4 1/2"
  • 4"
